Project Overview
Sheet Metal Services was commissioned to design and fabricate a large-capacity steel tank for installation onto an existing truck chassis. The project required precision engineering, durability, and a perfect final fit.
The Challenge
- Integrate a new tank with an existing chassis
- Maintain structural strength and alignment
- Ensure a leak-proof, high-quality sealed finish
- Deliver a complete fabrication-to-installation solution
Our Process
- Design
We began by taking detailed measurements directly from the chassis, producing accurate drawings to ensure a hassle free fit.
- Laser-Cut Accuracy
From these drawings, we generated files for our in-house laser cutter, allowing for:
- The high precision needed
- Component quality
- Efficient production
- Rolling & Assembly
- Fabricated from in-house rolled 6mm steel sections
- Formed into 2-metre diameter cylindrical sections
- Carefully assembled to achieve a ridged sealed structure
- Finishing & Mounting
- Custom mounting points fabricated for secure installation
- Coated with red oxide primer for corrosion protection
- Finished with durable yellow top-coats for visibility and longevity
Installation

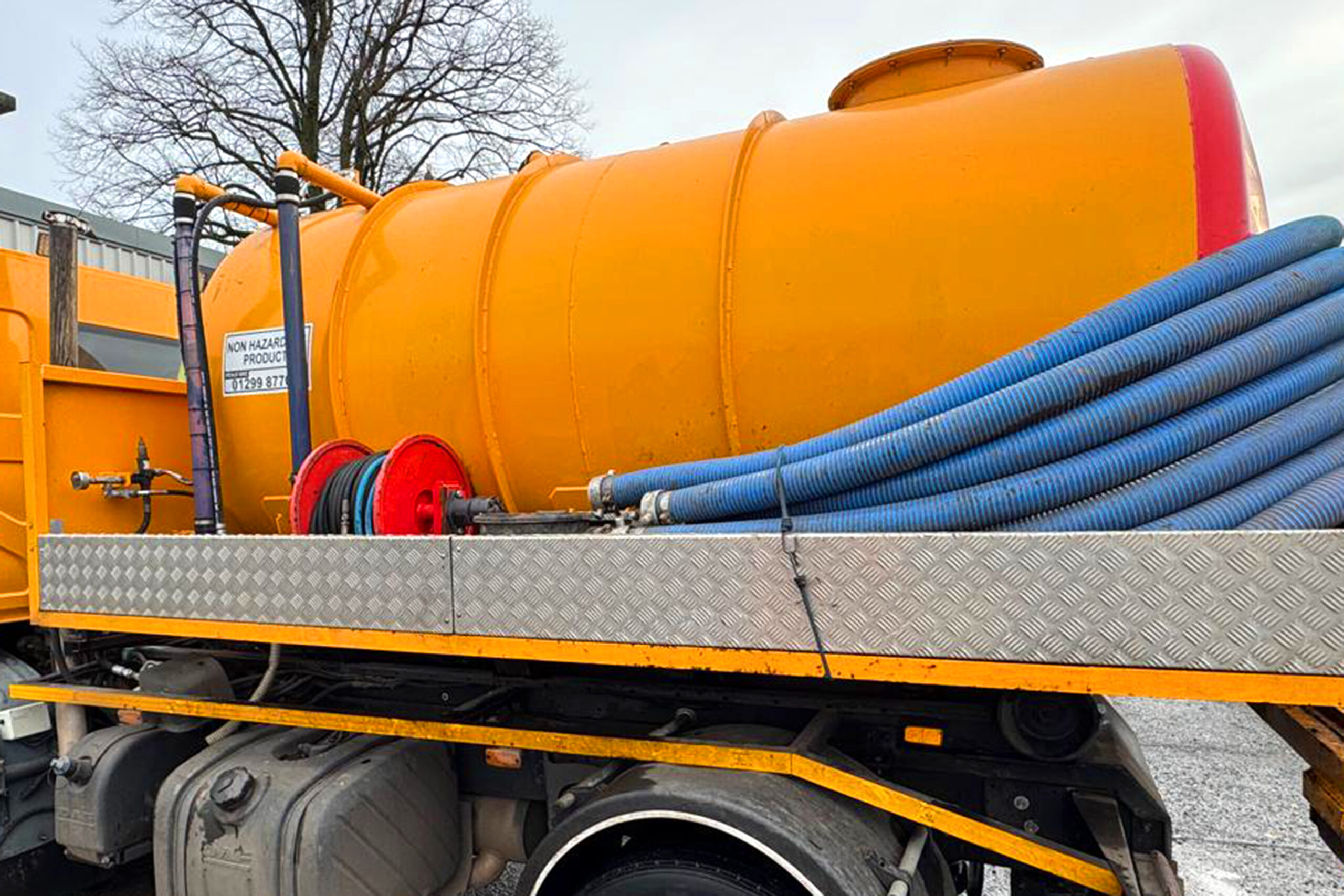

Once the fabrication and finishing were complete, we installed the tank onto the chassis, ensuring proper alignment and secure fixing before final handover.
The Result
A robust, high-quality tank assembly delivered and installed on-time and to specification.
